12 Regular (export) parties
Product features
1. Basic model, ordinary type control box, simple operation, easy to master.
2. The asphalt temperature and the speed of the asphalt pump are digitally displayed, making it clear at a glance.
3. Equipped with a reducer, the vehicle speed slows down, making it suitable for manual spraying.
4. High-torque hydraulic motor, solving the problem of difficult starting.
5. A unique gas path cleaning system solves the problem of residual asphalt clogging after construction.
6. Fully automatic burner, automatic ignition, automatic flameout in case of fault protection, with good reliability.
7. On-board diesel generator provides power guarantee, and heating does not require starting the vehicle.
Keywords：
regular,export,regular,export,
Categores：
Ordinary type asphalt spreader
Product Enquiries：
+86-17705341945Product description

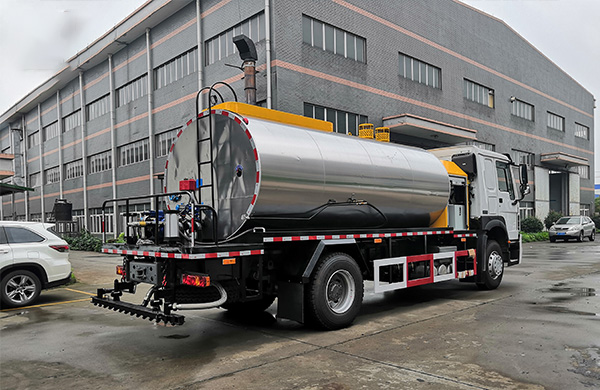

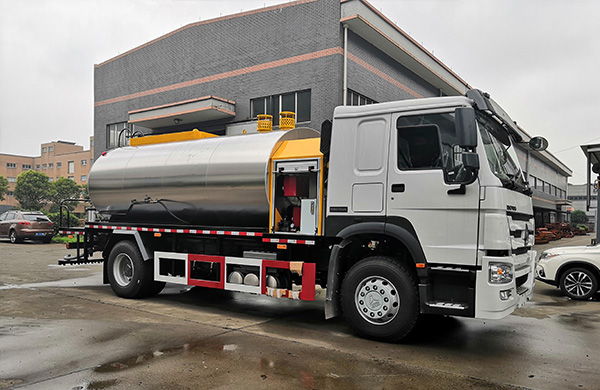

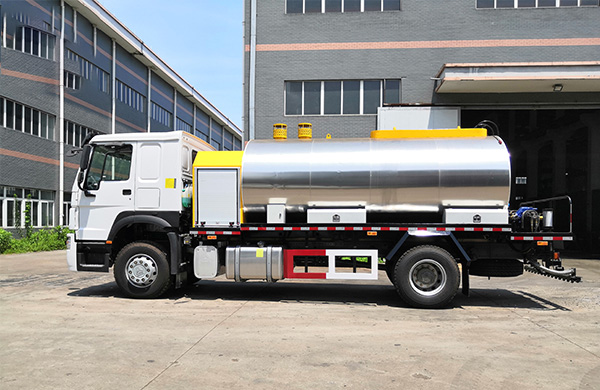

Configuration table of 12-cubic-meter standard asphalt Spreader
Chassis | ZZ1167M5011W | Sinotruk chassis | |
Asphalt tank | SPT201.34 | Self-made | Volume 12m3 |
Thickness of the insulation layer | 50mm | Aluminum silicate | |
Heating flue | Two | Dual heating system | |
Hydraulic system | Racle | Everson | Taiwan |
Cold oil cooler | AH1470 | Shanghai Yijian | Shanghai |
Control system | Xr110 | Self-made | Cab control |
Spray pipe | 6m/38 Nozzle | Nozzle | Common type nozzle (copper nozzle) |
Spraying form | Sector surface | ||
Asphalt pump | KCB633 | Hebei Laifu | 633L/min |
Generator | ER2500CX | Honda | 2.0kw，"Japan |
Burners (two) | G20 | Riyadh Road | 20×104 car L/h，Italy |
Power take-off | Chassis configuration | ||
Hydraulic pump | CBHZ-F563-ALPL | Hefei Changyuan | Hefei, Anhui |
Hydraulic motor | AKS05-110B | Taylorms | Ningbo, Zhejiang |
Valve | Pneumatic butterfly valveDN65 | Jiangsu Beifa Technology | Wuxi, Jiangsu |
Manual butterfly valveDN65 | Jiangsu Beifa Technology | Wuxi, Jiangsu | |
Lifting cylinder | SC100×250 | Shengda Pneumatic | Ningbo |
Sprinkling width | 4.5meter | ||
Sprinkling amount | 0.2-3kg/m2 | ||
Cleaning method | Diesel + high-pressure air |
Product features
1. Basic model, ordinary type control box, simple operation, easy to master.
2. The asphalt temperature and the speed of the asphalt pump are digitally displayed, making it clear at a glance.
3. Equipped with a reducer, the vehicle speed slows down, making it suitable for manual spraying.
4. High-torque hydraulic motor, solving the problem of difficult starting.
5. A unique gas path cleaning system solves the problem of residual asphalt clogging after construction.
6. Fully automatic burner, automatic ignition, automatic flameout in case of fault protection, with good reliability.
7. On-board diesel generator provides power guarantee, and heating does not require starting the vehicle.
