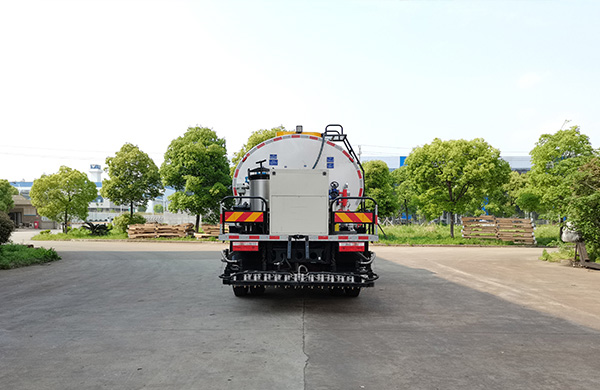

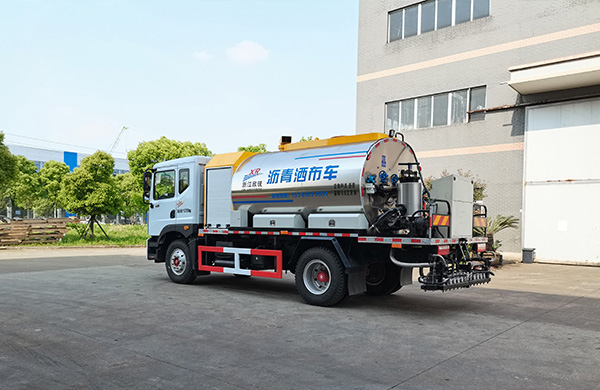

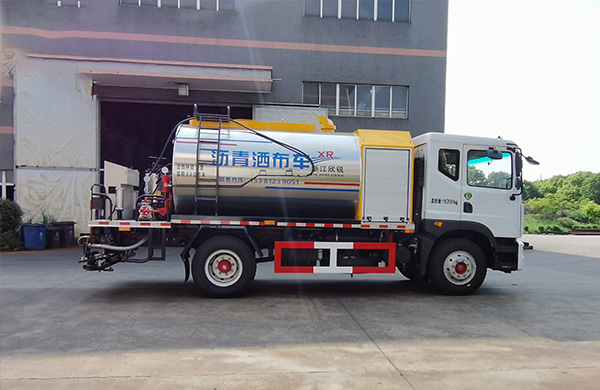

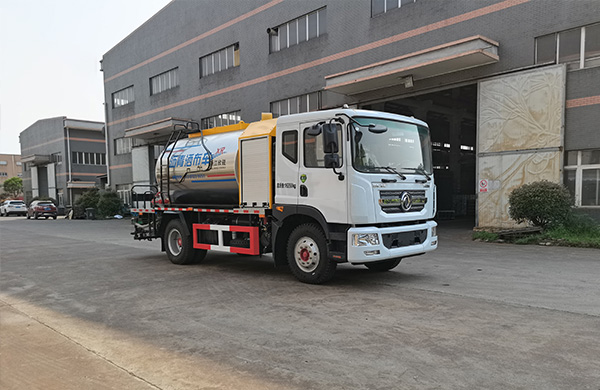

8-sided intelligent type
This vehicle is equipped with a Dongfeng D9 heavy-duty chassis, 9.00R20 steel wire tires, a wide-body double-layer frame, and has a strong weighing capacity. With a wheelbase of 3,950 meters and an overall length of 7.4 meters, it is convenient and flexible. The fully intelligent control system is equipped with a CPU and control module of Siemens brand and a touch screen of Taiwan Weilun. It can precisely control the amount of asphalt sprayed per square meter, freely switch between automatic control and manual control, and the spraying width can be controlled at will. The heat transfer oil system is configured to facilitate the removal of demulsified asphalt at the bottom of the asphalt tank, preventing people from climbing into the tank. When spraying hot asphalt, the heat loss in the pipeline is reduced through the circulation of heat transfer oil, ensuring a good spraying effect. Before each construction, by circulating the heat transfer oil, even if the asphalt pump is not cleaned at the end of the previous construction, the stuck asphalt pump can be dissolved. After the construction is completed, the oil can be returned to the tank with one click and the asphalt pump and spraying arm can be cleaned with one click to prepare for the next use.
Keywords：
8-sided,intelligent,type,
Categores：
Intelligent asphalt spreader
Product Enquiries：
+86-17705341945Product description
8-cubic-meter product allocation table
Model: ABC5165GLQ Form: Intelligent type with heat transfer oil
Total dimensions：7420*2460*3180 Total mass：16200KG
Component | Model specification | Brand | Explanation |
Chassis | EQ1165LJ9CDE | Dongfeng Motor | Fast transmission with bunk |
Asphalt tank | SZN120.34 | Self-made | Volume: 8.0 cubic meters |
Proportional valve assembly | EFRD-G03-160 | Northern Seiko | "Precision Engineering in northern Taiwan |
Hydraulic pump | CBN-F550 | Changyuan | Hefei Changyuan Hydraulic |
Hydraulic motor | 110B | Changyuan | Ningbo Telems |
CPU | ST30 | Siemens | Siemens of Germany |
PLC | S7-200 SMART | Siemens | Siemens of Germany |
Control module | SB AQ01 | Siemens | Siemens of Germany |
Taiwan Weilun | TK6071IP | Willen | Taiwan Weilun |
Asphalt pump | YC500 | Yuchen | Large displacement of internal meshing |
Heat transfer oil pump | RY32-32-160 | Wu 'an, Hebei | 6.5m3/h |
Generator | CCFD6500E3 | Chang Chai | 5.0KWThree-phase diesel |
Burner | 2N | Olympea | "Japanese brand |
Lifting cylinder | SC100×200 | Shengda Pneumatic | |
Reducer | JS-4-63 | Move forward | Hangzhou Dental Group |
Valve | 硬密封高温蝶阀 | Beifa Technology | Jiangsu Beifa |
Heat transfer oil valve | Yongyi |
Main technical Parameters Table of 8-cubic-meter asphalt Spreader
Intelligent type (with heat transfer oil
Vehicle parameters | Vehicle model | ABC5165GLQ | ||
Chassis model | EQ1165LJ9CDE | Vehicle type | Special operation vehicle | |
Overall dimensions (length × width × height)mm | 7420×2460×3180 | |||
Maximum gross mass（kg） | 16200 | Preparation quality（kg） | 8390 | |
Rated loading mass（kg） | 7680 | Wheelbase（mm） | 3950 | |
Tire specification | 9.00R20 | |||
Engine parameters | Engine model | YCY30165-60 | Rated power（kw） | 121 |
Parameters of special equipment | Control system | Fully intelligent | ||
Capacity of asphalt tank（L） | 8000 | |||
Asphalt spraying width（m） | 4.5 | |||
Sprinkling amount(L/m2) | 0.3~3 | |||
Number of nozzles | 29 | |||
Displacement of asphalt pump（l/min） | 500 | |||
Displacement of heat transfer oil pump（L/min） | 60 | |||
Burner capacity | 200,000 calories | |||
Introduction to the 8-party Fully intelligent Model:

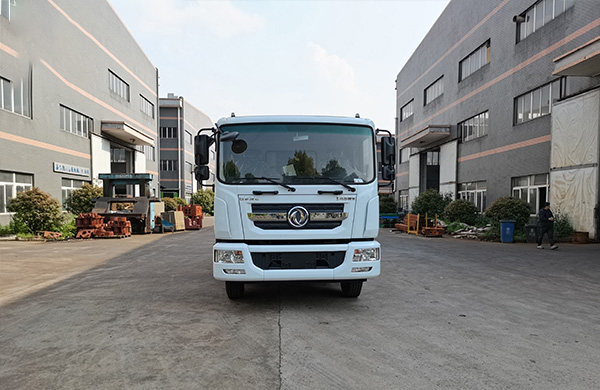

This vehicle is equipped with a Dongfeng D9 heavy-duty chassis, 9.00R20 steel wire tires, a wide-body double-layer frame, and has a strong weighing capacity.
With a wheelbase of 3,950 meters and an overall length of 7.4 meters, it is convenient and flexible.

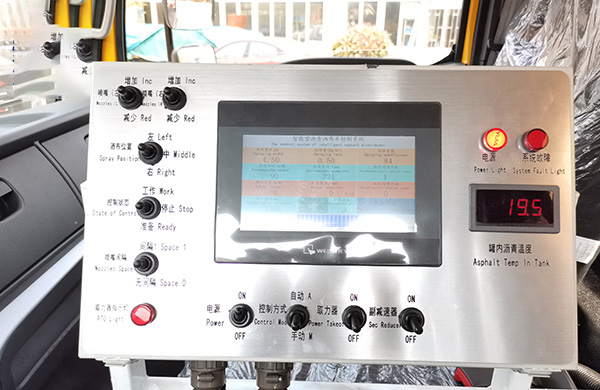

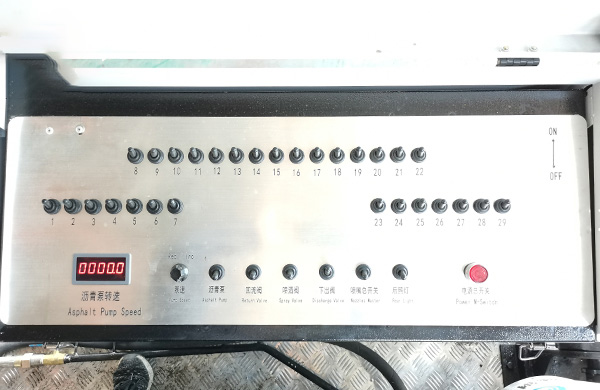

The fully intelligent control system is equipped with a CPU and control module of Siemens brand and a touch screen of Taiwan Weilun. It can precisely control the amount of asphalt sprayed per square meter, freely switch between automatic control and manual control, and the spraying width can be controlled at will.
The heat transfer oil system is configured to facilitate the removal of demulsified asphalt at the bottom of the asphalt tank, preventing people from climbing into the tank. When spraying hot asphalt, the heat loss in the pipeline is reduced through the circulation of heat transfer oil, ensuring a good spraying effect. Before each construction, by circulating the heat transfer oil, even if the asphalt pump is not cleaned at the end of the previous construction, the stuck asphalt pump can be dissolved.
After the construction is completed, the oil can be returned to the tank with one click and the asphalt pump and spraying arm can be cleaned with one click to prepare for the next use.
Product features
1. It adopts Dongfeng D9 heavy-duty chassis, double-layer frame, 9.00 steel wire tires, and the cab is equipped with a bunk.
2. With a wheelbase of 3,950 meters and a total length of 7.4 meters, it is compact and agile, offering flexible and convenient movement.
3. Intelligent control system, with touch screen setting for sprinkling parameters, achieving precise control of the sprinkling amount.
4. Fast 8-speed transmission, with the addition of a reducer, offers a wide range of spray volume control and is suitable for joint filling construction.
5. The heat transfer oil heating system features fast temperature rise and excellent heat preservation effect.
6. On-board diesel generator provides power guarantee, and heating does not require starting the vehicle.
7. After the construction is completed, the one-click oil return and cleaning functions are convenient and fast.
Vehicle model | ABC5165GLQ |
Chassis model | EQ1165LJ9CDE |
Engine model/power | YCY30165-60 Yuchai 165 horsepower |
Volume of asphalt tankm3 | 8 |
Sprinkling widthm | 4.5 |
The amount of asphalt spreadkg/m2 | 0.3-3.5 |
Heating method | Burner + heat transfer oil |
Burner capacity | 200,000 calories |
