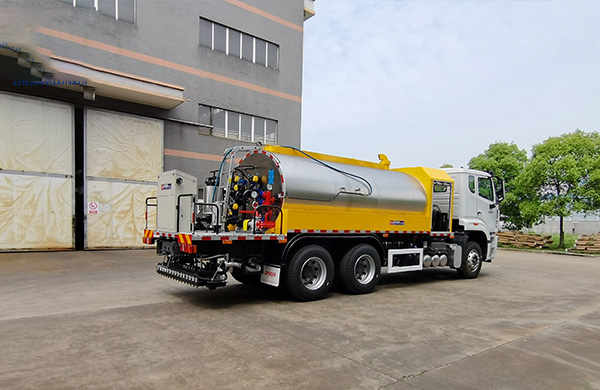

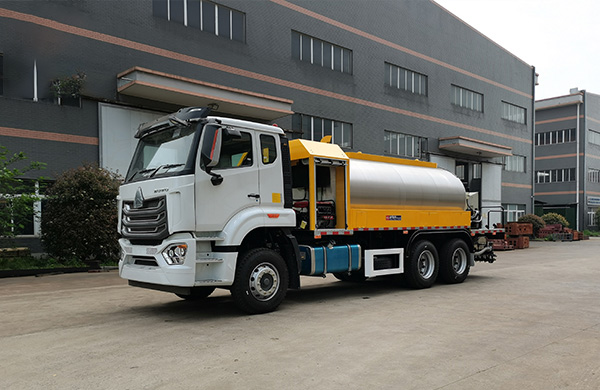

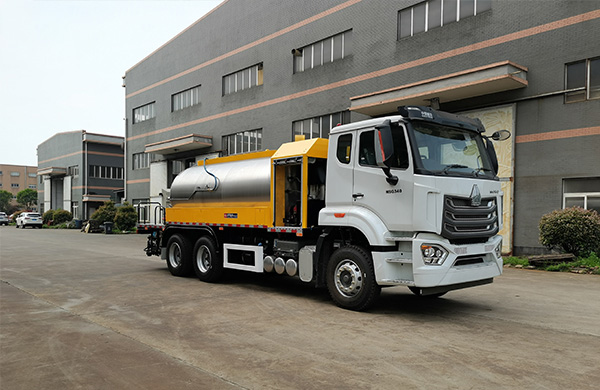

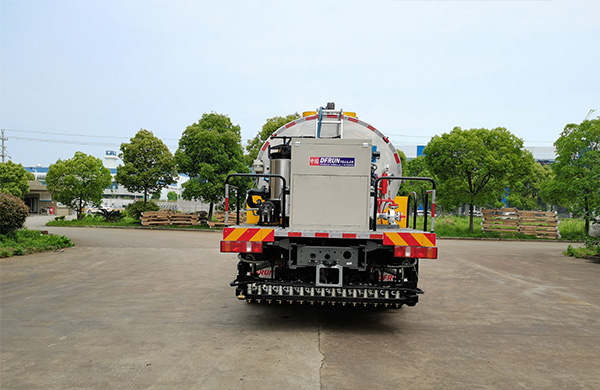

13-sided intelligent type
Product features: 1. Equipped with a Sinotruk chassis and a Weichai 280-horsepower engine, it offers strong power and a comfortable driving experience. 2. Heavy-duty chassis, rear double axle, three-layer frame, 11.00 steel wire tires, strong load-bearing capacity. 3. Intelligent control system, with touch screen setting for sprinkling parameters, achieving precise control of the sprinkling amount. 4. One-click switching between automatic and manual modes to meet different operation requirements. 5. Hydraulic drive, safe, reliable and noise-free. 6. The heat transfer oil heating system features fast temperature rise and excellent heat preservation effect. 7. On-board diesel generator provides power guarantee, and heating does not require starting the vehicle. 8. After the construction is completed, the one-click oil return and cleaning functions are convenient and fast.
Keywords:
13-sided intelligent type
Categores:
Intelligent asphalt spreader
Product Enquiries:
+86-17705341945Product description
Product allocation table
Form: Fully intelligent type with heat transfer oil. Total dimensions: 9350*2450*3250
| Component | Model Specification | Brand | Explanation |
|---|---|---|---|
| Chassis | Built-in chassis | ||
| Asphalt tank | SZN180.34 | Self-made | Volume: 13 cubic meters |
| Proportional valve group | EFRD-G03-160 | Northern Seiko | Northern Seiko, Taiwan, China |
| Hydraulic pump | CBN-F550 | Changyuan | Hefei Changyuan Hydraulic |
| Hydraulic motor | 110B | Taylorms | Ningbo Taylorms |
| CPU | ST30 | Siemens | Siemens, Germany |
| PLC | S7-200 SMART | Siemens | Siemens, Germany |
| Control module | SB AQ01 | Siemens | Siemens, Germany |
| Touch screen | TK6071IP | Weinview | Weinview, Taiwan, China |
| Asphalt pump | YC500 | Zhejiang Sairong | Internal meshing, low speed and large displacement |
| Heat transfer oil pump | RY32-32-160 | Hebei Zhaohong | 6.5m³/h |
| Proximity switch | E2B-M12KN08-WZ-C1 | OMRON | Omron |
| Temperature controller | E5CC-RX2ASM-800 | OMRON | Omron |
| Generator | ELT6500CX | Honda | 5KW three-phase gasoline |
| Burner | OM-2N | Olympea | 20L/h, Japan |
| Lifting cylinder | SC100×250 | Airtac | |
| Valve | Hard-sealed high-temperature butterfly valve | Jiangsu Ruike | |
| Heat transfer oil valve | Yongyi |
Main technical parameter table of 13-cubic-meter Fully intelligent asphalt Spreader
Vehicle Parameters | Vehicle Model | |||
Chassis Model | Vehicle Type | Special Operation Vehicle | ||
Overall Dimensions (L×W×H) mm | 9350*2450*3250 | |||
Maximum Total Mass (kg) | 25000 | Curb Weight (kg) | 13000 | |
Rated Loading Mass (kg) | 12000 | Wheelbase (mm) | 5200 | |
Engine Parameters | Engine Model | |||
Rated Power (kW) | ||||
Special Device Parameters | Control System | Fully Intelligent | ||
Asphalt Tank Capacity (L) | 13000 | |||
Asphalt Spraying Width (m) | 4.5 | |||
Spraying Amount (L/m²) | 0.3~3 | |||
Number of Nozzles | 29 | |||
Asphalt Pump Displacement (L/min) | 500 | |||
Heat Transfer Oil Pump Displacement (L/min) | 60 | |||
Burner Capacity | 200,000 kcal | |||
